Hebei Enjoy Technology Co., Ltd. is one of the leading manufacturers and suppliers of flat t grid making machine in China. Please feel free to buy high quality building material machinery made in China here from our factory. Good service and punctual delivery are available.
Product Description
Our high-efficiency flat t grid making machine is fully automated equipment designed to produce premium Main Tees, Cross Tees, and Wall Angles for suspended ceiling systems. It processes galvanized and pre-painted steel coils into precision profiles matching international building standards.
Key Features
High Production Speed: Reaches up to 35m/min with stable and continuous cold roll forming.
No Surface Damage: Precision-ground Cr12 rollers prevent scratches on pre-painted coils.
Flawless Punching: High-speed hydraulic station creates clean, burr-free fire-relief holes and lock clips.
Smart Automation: Centralized PLC system with touch screen ensures a cutting tolerance within ±0.1mm.
Quick Changeover: The flat t grid making machine supports modular cassette designs for fast profile switching under 30 minutes.
Technical Parameters
Raw Material: Galvanized steel / Pre-painted steel coils
Material Thickness: 0.23 mm – 0.40 mm
Forming Stations: 16 - 22 rollers (depending on profile design)
Main Driving Power: 5.5 KW / 7.5 KW
Cutting Type: Flying hydraulic tracking cut-off

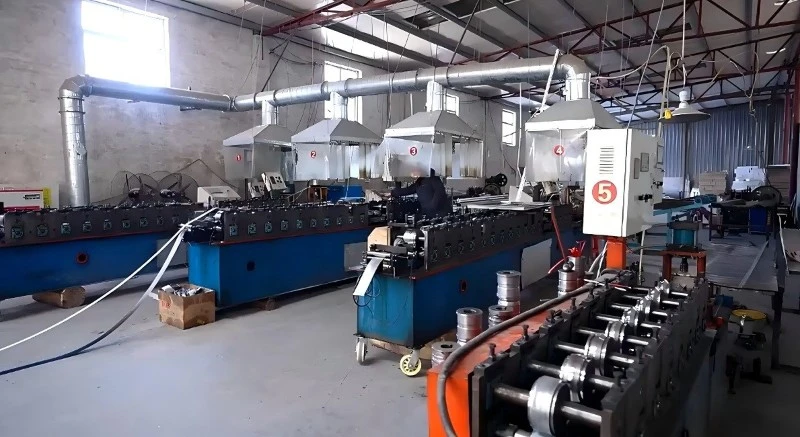

Factory Application Case
This flat t grid making machine is widely used by global construction material manufacturers. In a recent project for a Middle East airport contractor, our equipment delivered millions of linear meters of 24mm flat T-grids. The high-precision lock heads increased the on-site installation speed by 40% and kept material waste below 1%.
