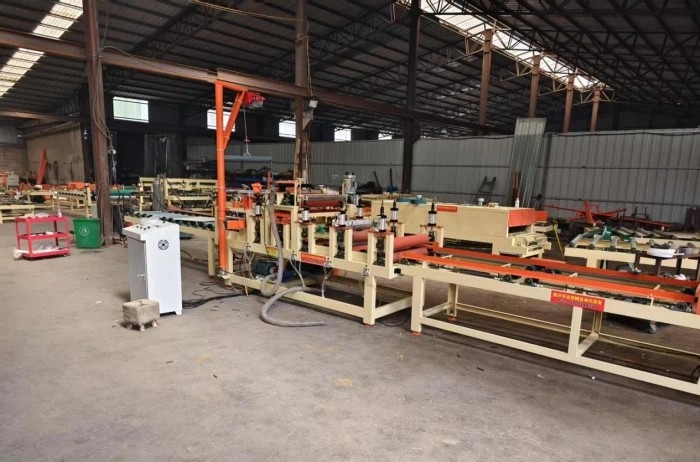

The Vinyl-Faced Gypsum Lay-in Ceiling Production Line is a specialized manufacturing system designed to produce high-quality, decorative gypsum ceiling tiles. This line transforms raw gypsum boards into finished lay-in ceiling panels by laminating a durable vinyl (PVC) film onto the surface.
These ceiling tiles are widely used in commercial and residential buildings (offices, hospitals, schools) due to their moisture resistance, ease of cleaning, and aesthetic versatility.
Key Technical Specifications
|
Parameter |
Specification |
|
Raw Material |
Paper-faced Gypsum Board (Standard/Moisture Resistant) |
|
Facing Material |
PVC Vinyl Film (various colors/patterns) |
|
Adhesive |
High-strength Solvent-based or Water-based Glue |
|
Panel Thickness |
7mm – 15mm (Customizable) |
|
Standard Size |
600x600mm, 600x1200mm, 595x595mm |
|
Production Speed |
10 – 25 meters/minute (Depending on configuration) |
|
Power Consumption |
Approx. 30kW – 50kW (System dependent) |
|
Edge Type |
Square Edge |
Production Process Flow
The production line integrates several distinct stages to ensure precision and durability:
Board Feeding & Preparation
Automatic Feeder: Loads raw gypsum boards onto the conveyor.
Dust Removal: A brushing or vacuum system removes surface dust to ensure optimal adhesion.
01
Glue Application (Lamination)
Glue Spreader: Applies a uniform layer of adhesive onto the gypsum board surface.
Film Unwinding: The PVC vinyl film is unrolled and aligned precisely over the board.
02
Pressing & Bonding
Laminating Roller/Press: High-pressure rollers press the vinyl film onto the glued board, eliminating air bubbles and ensuring a tight bond.
Curing: The board passes through a section to allow the adhesive to set.
03
Trimming & Cutting
Edge Trimming: Excess vinyl film is trimmed flush with the board edges.
Cross Cutting: The continuous line is cut into specific tile lengths (e.g., 600mm or 1200mm) using a pneumatic cutter or saw.
04

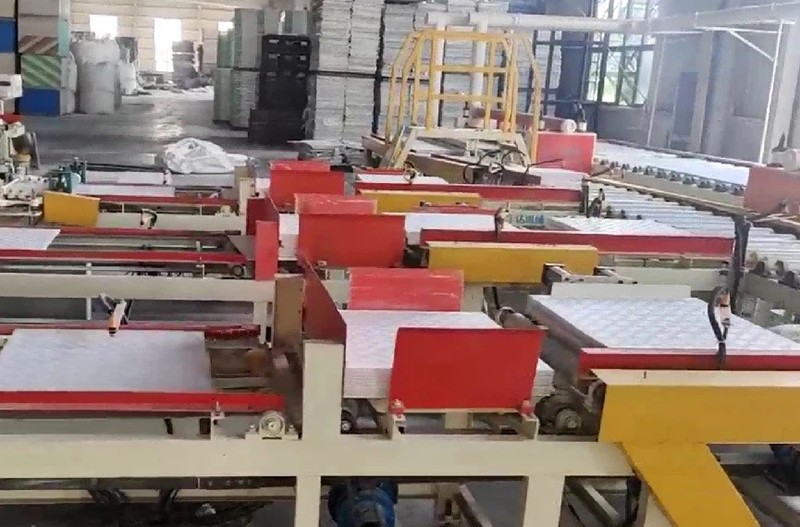

Stacking & Packaging
Automatic Stacker: Collects finished tiles into bundles.

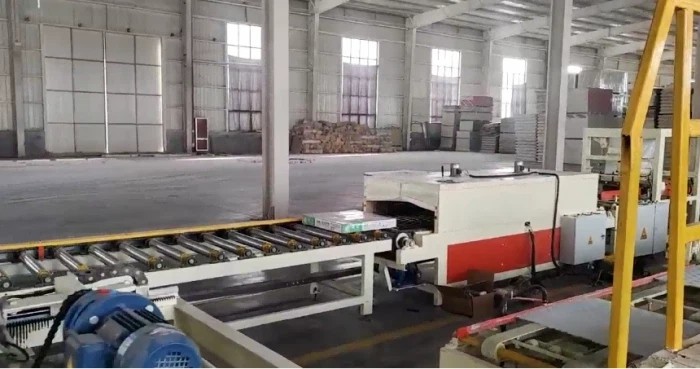

Shrink Wrapping: Bundles are wrapped for protection during shipping.
05
Machine Features & Advantages
- High Precision Lamination: Ensures the vinyl film is applied without wrinkles or bubbles, critical for aesthetic appeal.
- Versatile Design: Capable of handling various vinyl patterns (marble, wood, plain white) and gypsum board thicknesses.
- Automated Control: Equipped with a PLC (Programmable Logic Controller) system for easy operation and speed adjustment.
- Waste Reduction: Precise cutting and trimming mechanisms minimize material waste.
- Compact Structure: Designed to fit efficiently within standard factory workshops (typically requiring a length of 30m–50m).
Finished Product Applications
The resulting Vinyl-Faced Gypsum Ceiling Tiles offer:
Moisture Resistance
Ideal for humid environments like kitchens or bathrooms.
Fire Resistance
The gypsum core provides inherent fire safety.
Easy Maintenance
The vinyl surface is washable and resistant to staining.
Acoustic Properties
Can be perforated (with sound paper backing) to improve room acoustics.
