Hebei Enjoy Technology Co., Ltd. is one of the leading manufacturers and suppliers of pvc film lamination machine gypsum in China. Please feel free to buy high quality building material machinery made in China here from our factory. Good service and punctual delivery are available.

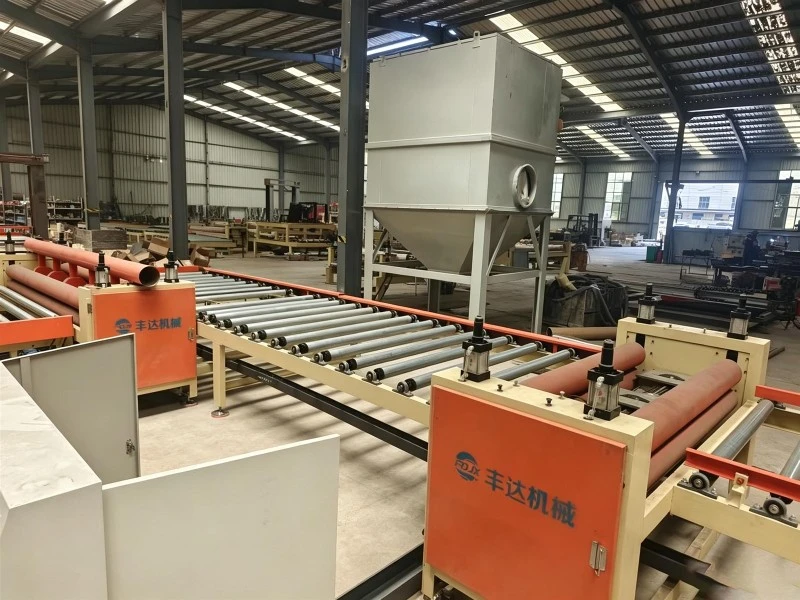

Investing in a high-efficiency pvc film lamination machine gypsum board production line is the key to capturing the premium interior decoration market. Our heavy-duty industrial laminating system is engineered specifically for cross-industrial manufacturers aiming to laminate PVC foil, aluminum foil, or protective films onto gypsum boards, acoustic plasterboards, and calcium silicate panels seamlessly. With fully automated processing from board feeding to final edge trimming, this production line ensures flawless adhesion, maximum uptime, and zero-defect output.
⚙️ Core Technical Configuration & Specifications
Applicable Base Board: Gypsum ceiling tiles, plasterboards
Maximum Working Width: 1300 mm (Customizable up to 1600 mm)
Lamination Speed: 10 – 40 m/min (Inverter controlled variable speed)
Laminating Material: PVC film, Aluminum foil backing
Adhesive Type: Standard PVAC glue / High-performance PUR hot melt adhesive
Total Installed Power: Approx. 32 kW - 45 kW (Depending on heating module)
🌟 Advanced Engineered Features
1. Precision Multi-Stage Pre-Treatment
Before the coating process begins, the substrate undergoes a double-action dust collection system. High-speed rotating nylon brushes combined with powerful industrial vacuum fans eliminate all micro-gypsum dust from the board surface, guaranteeing an ultra-smooth bonding foundation.
2. Advanced Micro-Metric Glue Coating System
Our pvc film lamination machine gypsum utilizes anilox metering rollers and rubber application rollers to distribute adhesive with micro-metric precision. This uniform coating technology eliminates standard pooling or dry-spotting issues, reducing adhesive consumption by up to 15% while maximizing peel strength.
3. High-Stability Tension Control & Pressing Roller Matrix
The PVC foil unwinding unit features an electromagnetic powder brake system for constant tension control, preventing film stretching or wrinkling. The pressing section is configured with a sequential matrix of vulcanized rubber rollers and pneumatic pressure cylinders, delivering balanced linear force to ensure permanent, bubble-free lamination.
4. Inline Synchronous Cutting & Edge Trimming
Equipped with high-precision optical sensors and an encoder tracking system, the inline cutting module executes rapid, synchronized flying cuts without stopping the board flow. The side trimming knives profile the edges simultaneously to ensure perfect dimensional accuracy for standard 600x600mm or 1200x600mm ceiling tiles.
🏗️ Why Upgrade to Our Industrial Lamination Line?
Modular Expansion: Easily integrates with automatic board loading hoppers, automatic longitudinal slitting machines, and robotic palletizing systems.
PUR Hot Melt Compatibility: Optional upgrade to PUR hot melt applicators for waterproof and high-humidity ceiling tile production.
Heavy-Duty Frame: Built with 12mm welded steel plate structures, heat-treated to eliminate internal stress, ensuring vibration-free operation under high-speed loads.
