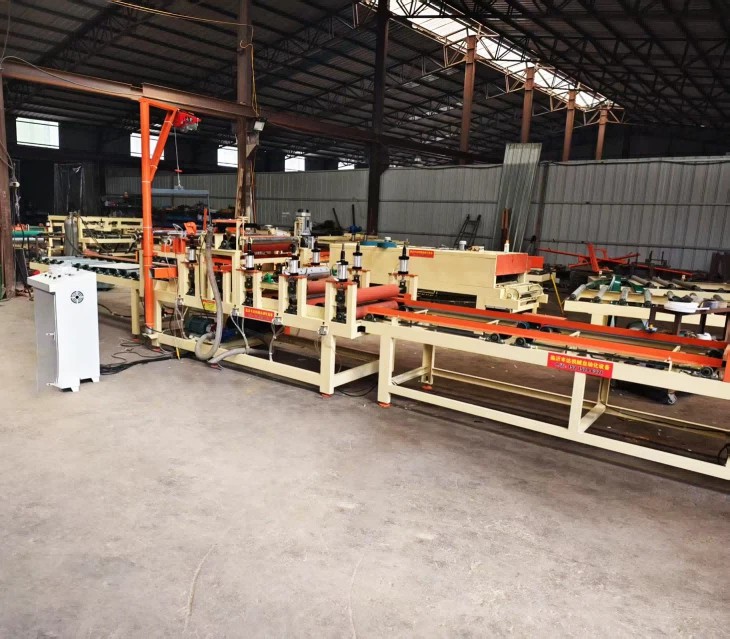

This comprehensive production line is engineered for the automated manufacturing of high-quality, decorative PVC gypsum ceiling tiles. It integrates advanced processes to transform raw gypsum boards into finished, market-ready ceiling tiles with high efficiency and precision.
Key Features
Fully Automated Operation
The entire process, from board feeding to final stacking, is controlled by an advanced computerized system (e.g., PLC or DCS), minimizing labor requirements and ensuring consistent product quality.
01
High Efficiency & Output
Designed for continuous production with a high-speed workflow, capable of processing standard-sized boards at speeds up to 15 meters per minute.
02
Superior Finish Quality
The lamination process creates a smooth, durable surface available in various finishes (e.g., glossy or matte) and patterns (e.g., wood grain, marble).
03
Precision Cutting
An automated cutting system ensures accurate dimensions for the final tiles, with common sizes including 600x600mm and 500x500mm.
04
Integrated Dust Collection
The system is equipped with a pulse-jet bag filter dust collector to maintain a clean and environmentally friendly production environment.
05
Production Process Flow
- Board Feeding: The process begins with either manual or automatic feeding of standard paper-faced gypsum boards (e.g., 1220x2400mm).
- Dust Removal: The board surface is cleaned by a dust removal unit to ensure optimal adhesion for the subsequent lamination.
- Adhesive Coating: A specialized coating machine applies a uniform layer of adhesive specifically designed for PVC or aluminum foil films.
- Film Lamination: The PVC or aluminum foil film is unrolled and precisely laminated onto the gypsum board using a pneumatic composite system.
- Pressing & Drying: The laminated board passes through a series of pressing (cold and hot) and drying sections to ensure a strong, bubble-free bond.

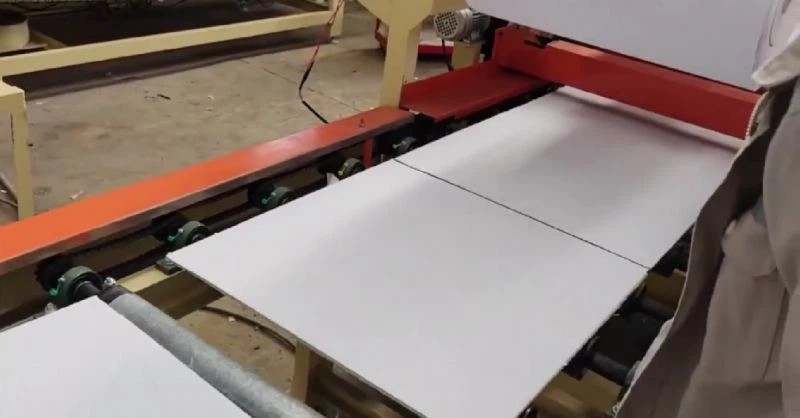

- Automatic Cutting: The continuous laminated board is automatically cut into the desired tile sizes by a multi-blade cutting unit (e.g., with longitudinal and transverse cutters).
- Stacking: The finished ceiling tiles are automatically stacked and prepared for packaging.
Technical Specifications
|
Parameter |
Specification |
|
Applicable Board Size |
1220 x 2400 mm |
|
Finished Tile Sizes |
600 x 600 mm, 600 x 1200 mm, etc. |
|
Lamination Width |
Up to 1300 mm |
|
Cutting Speed |
Up to 15 m/min |
|
Control System |
Frequency conversion speed control, PLC/DCS |
|
Transmission |
Synchronized chain and sprocket system |
|
Total Power |
~30-35 KW (varies by configuration) |
|
Production Line Dimensions |
Length: ~20-25 meters (approx.) |
Applications
The decorative PVC gypsum ceiling tiles produced by this line are widely used in various interior settings, including:
- Residential buildings
- Office complexes
- Hotels and restaurantHospitals and schools
- Shopping malls and other commercial spaces
