Hebei Enjoy Technology Co., Ltd. is one of the leading manufacturers and suppliers of vinyl faced gypsum ceiling tile production equipment in China. Please feel free to buy high quality building material machinery made in China here from our factory. Good service and punctual delivery are available.
Products Description
Our Fully Automatic Vinyl Faced Gypsum Ceiling Tile Production Equipment (also known as PVC Gypsum Ceiling Tile Making Machine) is a state-of-the-art turnkey industrial solution designed for high-capacity manufacturing. This heavy-duty production line seamlessly integrates lamination, cutting, edge-banding, and automatic stacking to transform standard jumbo gypsum boards into premium, market-ready PVC-faced and aluminum foil-backed acoustic ceiling tiles.
Engineered with advanced PLC controls and precision mechanical components, our equipment empowers construction material manufacturers to achieve maximum output, zero material waste, and rapid return on investment (ROI).
Technical Specifications & Production Capacity
We offer scalable configurations from economic semi-automatic lines to ultra-high-speed fully automated systems to match your budget and market demand.
Production Capacity: 1,000,000 to 5,000,000 square meters per year (Customizable based on shift hours).
Finished Tile Sizes: 595 × 595 mm, 600 × 600 mm, 603 × 603 mm, 600 × 1200 mm (Easily adjustable in the system).
Applicable Raw Materials: Standard Gypsum Board (9mm–12mm), PVC Film, Aluminum Foil, Eco-Friendly Glue.
Total Power Supply: 30kW – 75kW (Depending on configuration).
Required Factory Footprint: Minimum 45m (Length) × 6m (Width) × 4.5m (Height).

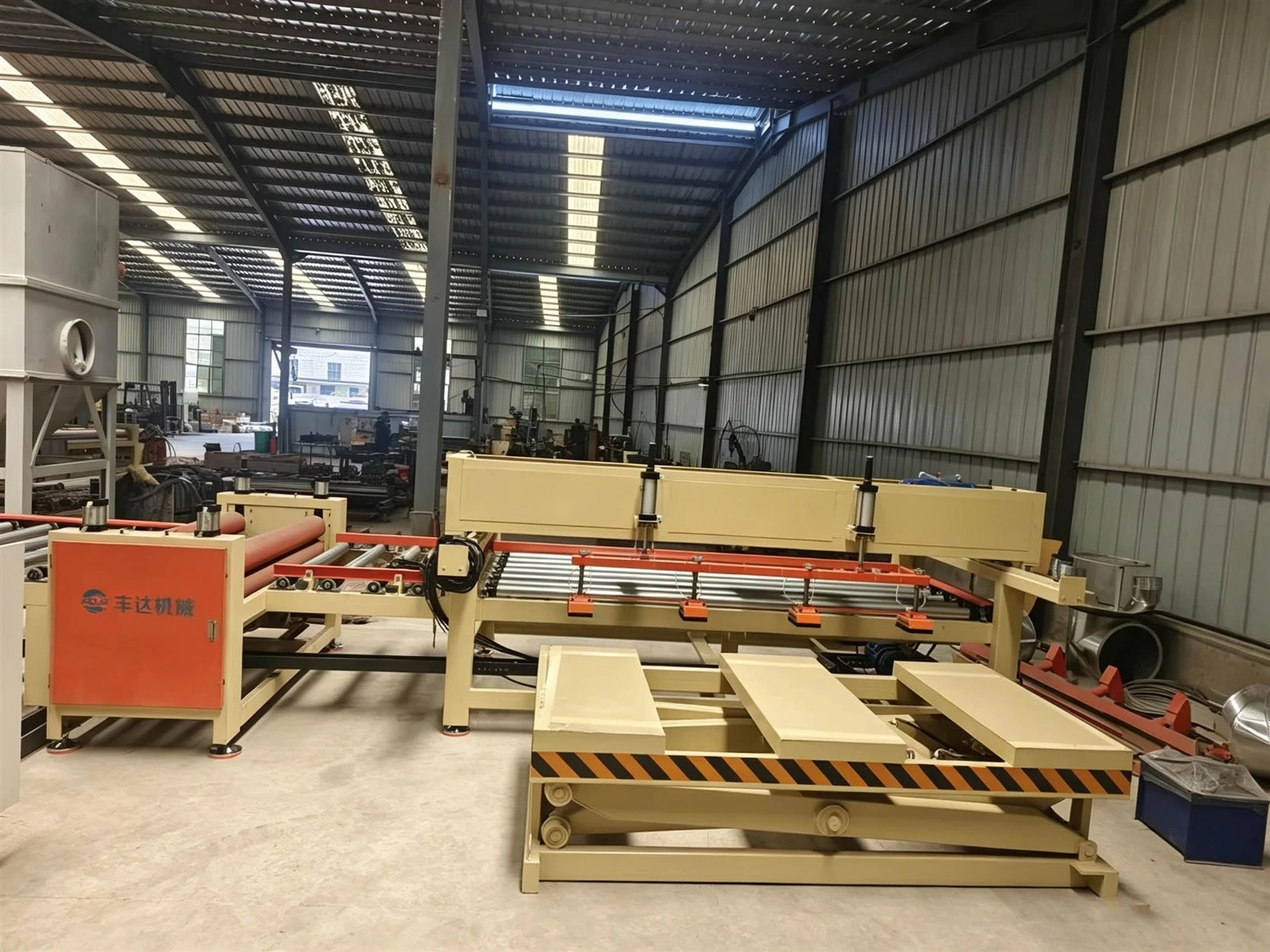

Complete Production Line Workflow (Step-by-Step)
Our inline system ensures a flawless, uninterrupted manufacturing process:
Board Loading Station: Automatic vacuum lifting and feeding of the base gypsum boards.
Dual-Side Lamination Machine: Applies high-quality PVC film onto the front surface and moisture-proof aluminum foil onto the back simultaneously using specialized gluing rollers.
Precision Sawing & Cutting System: Advanced multi-blade longitudinal and transverse cutting units slice the jumbo sheets into precise 60x60cm or custom tile sizes with zero edge-chipping.
Automatic Edge Tape Banding: Seals the raw exposed gypsum edges with protective tape to prevent dust shedding and enhance structural moisture resistance.
Dust Collection System: Integrated industrial vacuum units keep the cutting zone clean and protect workers' health.
Automatic Stacking & Packaging: Neatly stacks finished tiles onto pallets, ready for shrink-wrapping and shipping.
Core Technical Advantages
High-End PLC Automation: Equipped with centralized PLC control systems and touch screens, allowing a single operator to manage the entire manufacturing line.
Micro-Precision Cutting Accuracy: Heavy-duty, high-speed tungsten carbide saw blades ensure a cutting tolerance within ±0.5mm, ensuring perfect installation with standard Ceiling T Grid systems.
Energy-Saving & Eco-Friendly: Optimized heating and glue-curing modules consume up to 20% less electricity compared to traditional, outdated machinery models.
Heavy-Duty Frame Construction: Built with national standard H-beam steel and premium anti-wear bearings to guarantee 24/7 continuous operation with minimum maintenance downtime.
Turnkey Global Engineering & Support
Investing in industrial machinery requires a reliable partner. We provide complete lifecycle services for international buyers:
🏗️ Factory Layout Design: Tailored CAD workshop drawings based on your specific factory dimensions.
🛠️ On-Site Installation & Training: Dispatching experienced mechanical and electrical engineers to your country for machine commissioning and operator training.
⚙️ Lifetime Spare Parts Supply: Guaranteed stock of wear parts, cutting blades, and electronic components for rapid global dispatch.
