Are you looking to expand your building materials manufacturing business or invest in a high-return industrial project? Our fully automatic PVC Laminated Gypsum Ceiling Tile Production Equipment is the ultimate turnkey solution to convert standard drywall panels into premium, waterproof, and sag-resistant commercial ceiling tiles.
With the rising global demand for decorative, moisture-proof suspended ceilings in offices, hospitals, and schools, this manufacturing line guarantees a rapid return on investment (ROI) by elevating low-cost raw materials into high-margin building products.
Key Technical Specifications
Our manufacturing systems are engineered for heavy-duty industrial output and built with premium global components:
Production Capacity: 2,000,000 to 8,000,000 square meters per year (customizable based on factory scale)
Line Speed: 2 to 15 meters per minute (m/min) with variable frequency drive (VFD) controls
Standard Tile Dimensions: Supports 595×595mm, 600×600mm, 603×603mm (2'x2'), 1200×600mm (2'x4')
Board Thickness Range: 5 mm to 25 mm
Lamination Width: Max 1300 mm (efficiently processes master boards before precision cutting)
Control System: Full PLC Automation with user-friendly HMI touchscreen panel

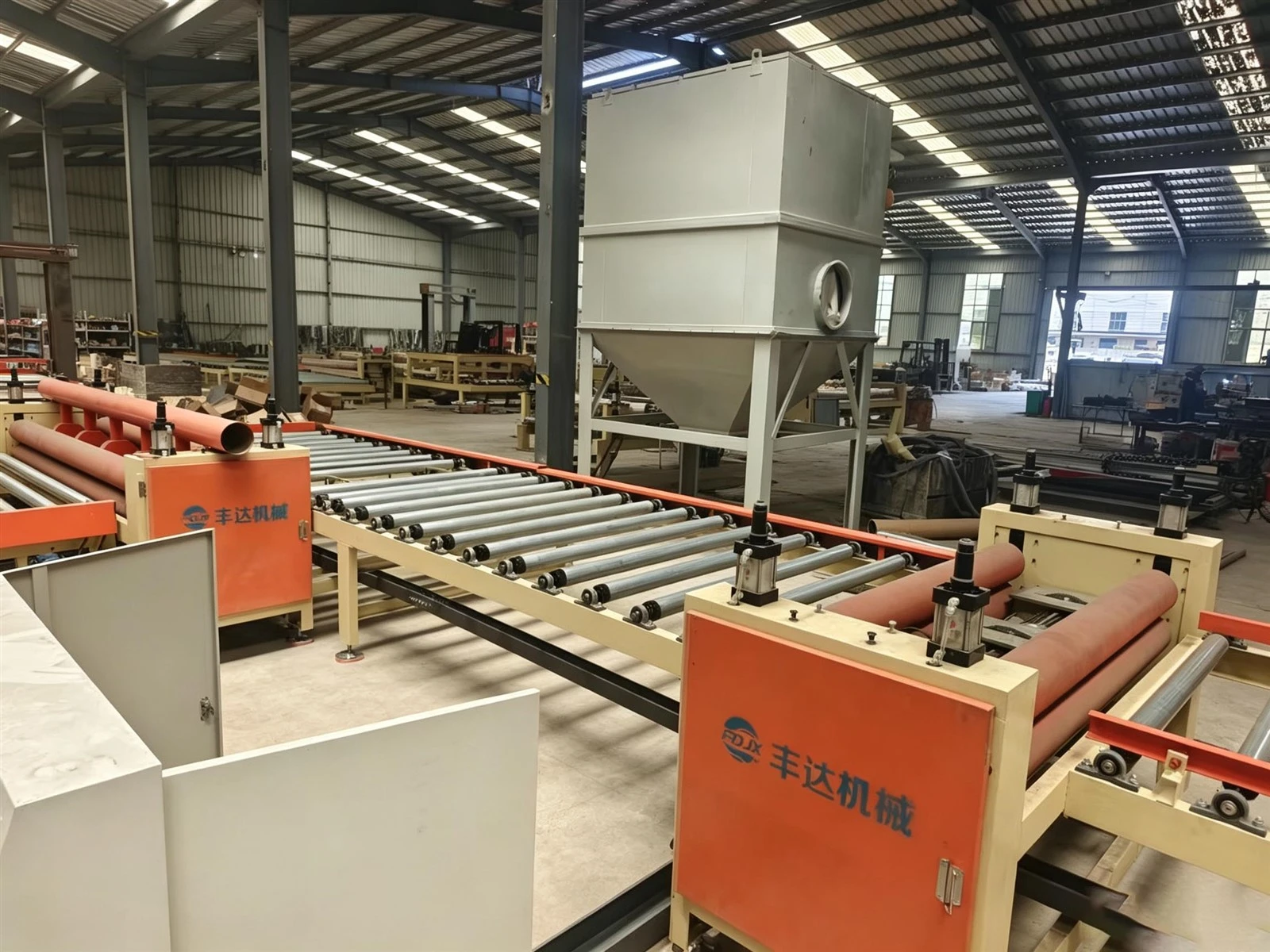

Full Production Line Workflow & Core Modules
1. Automatic Board Loading Section
Utilizes heavy-duty hydraulic lifting platforms and a pneumatic cylinder feeding mechanism to continuously push raw gypsum boards into the line without stopping.
2. High-Efficiency Dust Extraction Unit
Equipped with dual counter-rotating industrial brush rollers and a powerful vacuum hood. This step clears away all loose plaster dust and chalky drywall residue to ensure a flawless, bubble-free lamination bond.
3. Double-Sided High-Precision Laminator
The heart of the line. It applies a uniform layer of premium white latex or hot-melt adhesive via high-precision steel rollers. It simultaneously dispenses and laminates:
Top Side: Decorative PVC Film (woodgrain, textured, matte, or glossy designs)
Bottom Side: Protective Aluminum Foil (serves as a high-performance moisture and vapor barrier)
4. Multi-Blade CNC Longitudinal & Transverse Cutting Machine
Advanced automated circular saws cut the laminated master board into precise square grids according to market standards. Features clean cutting edges with zero core crumbling.
5. Automatic 4-Edge Banding Machine
Applies matching PVC adhesive tape to seal all four raw, exposed plaster edges of the cut tiles. This critical step locks in core dust and completely blocks ambient moisture from causing edge-swelling or mold.
6. Automatic Stacking & Thermoplastic Shrink Packaging Line
Finished tiles are automatically counted and stacked into bundles, sent through a PE shrink-wrap heat tunnel, and boxed. The final product is perfectly sealed against dust and moisture, ready for global shipping.
Outstanding Advantages of Our Equipment
Advanced Cost Efficiency: Optimizes glue and film usage with specialized coating technology, minimizing raw material waste to less than 1%.
Vapor-Barrier Technology: The resulting aluminum-backed tiles pass strict international anti-sagging and moisture-proof standards, ideal for humid tropical climates.
Zero-Dust Operation: Fully enclosed sawing and edge-sealing stations comply with stringent environmental and workplace safety regulations.
Global Layout & Commissioning: We provide comprehensive factory layout design, overseas engineer installation, operator training, and lifetime technical support.
