Hebei Enjoy Technology Co., Ltd. is one of the leading manufacturers and suppliers of pvc laminated gypsum board plant in China. Please feel free to buy high quality building material machinery made in China here from our factory. Good service and punctual delivery are available.

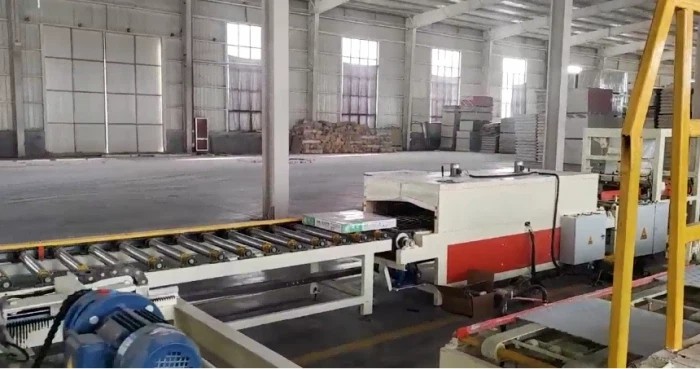

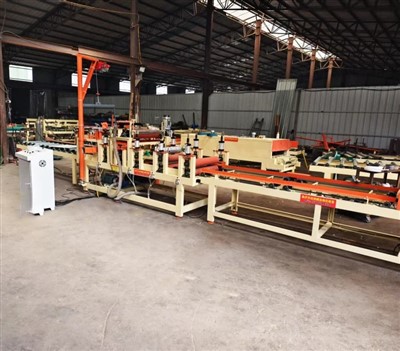

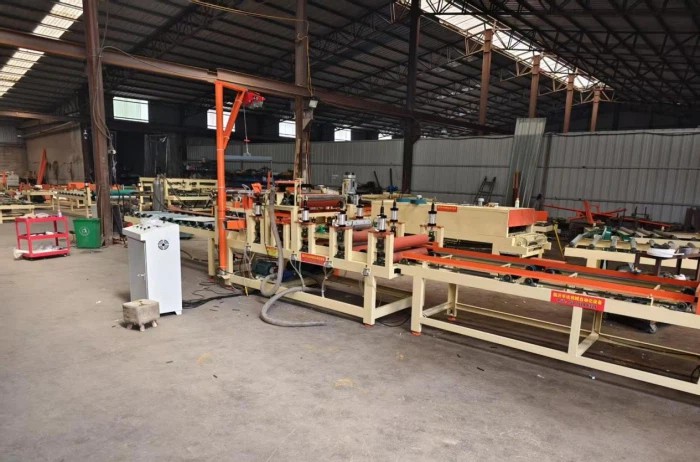

The PVC Laminated Gypsum Board Production Line is a state-of-the-art, fully automated manufacturing system designed for the high-efficiency production of decorative ceiling and wall panels. This integrated line transforms standard paper gypsum boards into high-value, finished products by laminating a decorative PVC film on the front surface and a protective aluminum foil layer on the back.
The resulting PVC laminated gypsum board is a composite material renowned for its excellent moisture resistance, fire retardancy, ease of cleaning, and aesthetic versatility, making it ideal for demanding environments such as hospitals, laboratories, hotels, and commercial spaces.
Key Features & Advantages
Full Automation
The entire process, from board feeding to final stacking, is controlled by a sophisticated PLC or DCS system, minimizing labor costs and ensuring consistent product quality.
High Efficiency
Designed for continuous operation, the production line offers high output capacity, with speeds reaching up to 15 meters per minute for cutting and processing.
Superior Bonding Quality
Advanced (gluing) systems ensure uniform adhesive application, while precision heating and pressing mechanisms guarantee a smooth, wrinkle-free lamination with strong adhesion.
Integrated Production
The line seamlessly combines multiple processes-including dust removal, gluing, laminating, hot/cold pressing, cutting, and stacking-into a single, streamlined workflow.
Versatility
Capable of processing standard gypsum boards (e.g., 1220x2400mm) and producing various finished sizes (e.g., 600x600mm, 595x595mm) and thicknesses (7mm-12mm). It can handle different types of PVC films, including wood grain, marble patterns, and solid colors.
Dust Control
Equipped with a powerful pulse-jet bag filter dust collector to maintain a clean working environment and ensure optimal bonding conditions.
Production Process Flow
The production line operates through a series of precisely coordinated stages:

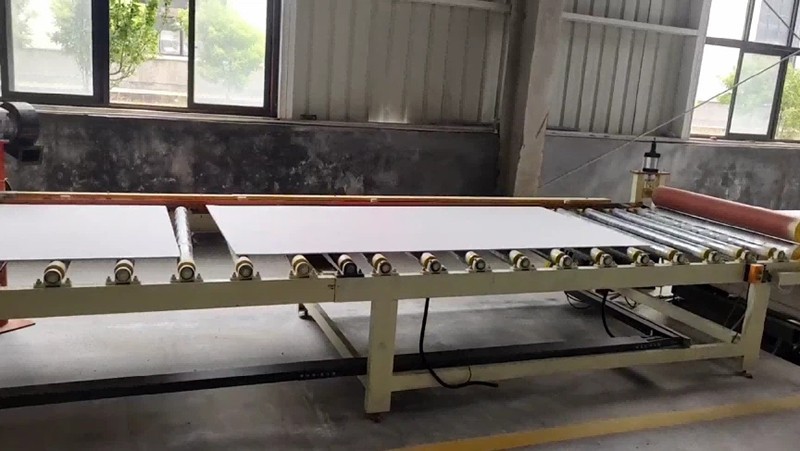

- Board Feeding: Standard paper gypsum boards are automatically or manually fed onto the conveyor system.
- Dust Removal: A dust cleaning unit removes any particles from the board surface to ensure a clean substrate for lamination.
- Gluing (Front): A dedicated gluing mechanism applies a uniform layer of specialized adhesive to the front surface of the gypsum board.
- Laminating (Front): The decorative PVC film is unrolled from a large spool and precisely laminated onto the glued surface of the board.
- Pressing & Bonding: The board passes through a series of hot and cold pressing rollers. This process activates the adhesive and ensures a firm, durable bond between the PVC film and the gypsum core.
- Gluing & Laminating (Back): The board is automatically flipped. The same gluing and laminating process is repeated on the reverse side, this time applying a protective aluminum foil layer for enhanced moisture resistance.
- Curing & Cooling: The laminated board moves through a cooling section to allow the adhesive to fully cure and set.
- Automatic Cutting: A computer-controlled cutting unit precisely trims the continuous laminated board into standard ceiling tile sizes (e.g., 600x600mm).
- Stacking & Packaging: Finished boards are automatically stacked and prepared for packaging and shipment.
Technical Specifications
|
Parameter |
Specification |
|
Applicable Board Size |
1220mm x 2400mm (Standard Gypsum Board) |
|
Finished Product Sizes |
600x600mm, 595x595mm, 600x1200mm, etc. |
|
Production Speed |
Up to 15 meters/minute (cutting speed) |
|
Laminating Width |
Up to 1300mm |
|
Total Installed Power |
Approx. 30-40 KW (varies by configuration) |
|
Control System |
PLC / DCS with Touch Screen Interface |
|
Transmission Mode |
Chain & Sprocket / Belt Drive |
|
Overall Dimensions (LH) |
Approx. 12,600mm x 2,000mm x 1,600mm (Main Line) |
|
Dust Collector Power |
15 KW |
Final Product Applications
The PVC laminated gypsum boards produced by this line are widely used in various interior decoration applications, particularly in areas requiring high hygiene and moisture resistance:
Healthcare
Hospital operating rooms, cleanrooms, and laboratories.
Commercial
Hotels, restaurants, shopping malls, and office buildings.
Public Facilities
Subway stations, airports, and swimming pools.
Industrial
Food processing plants and pharmaceutical workshops.
