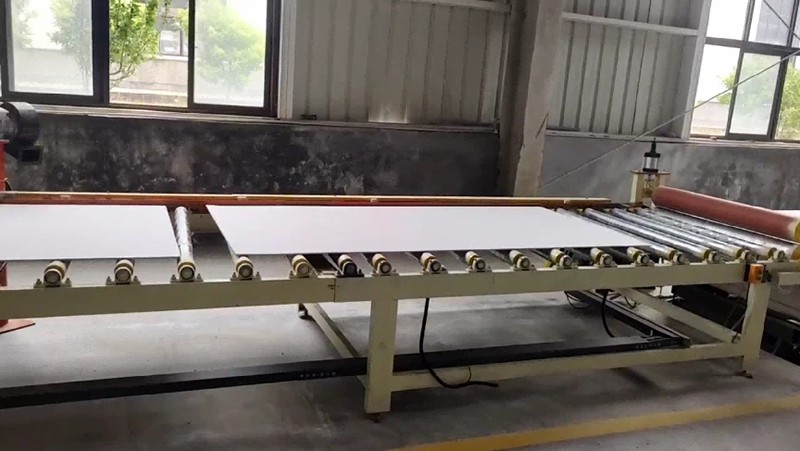

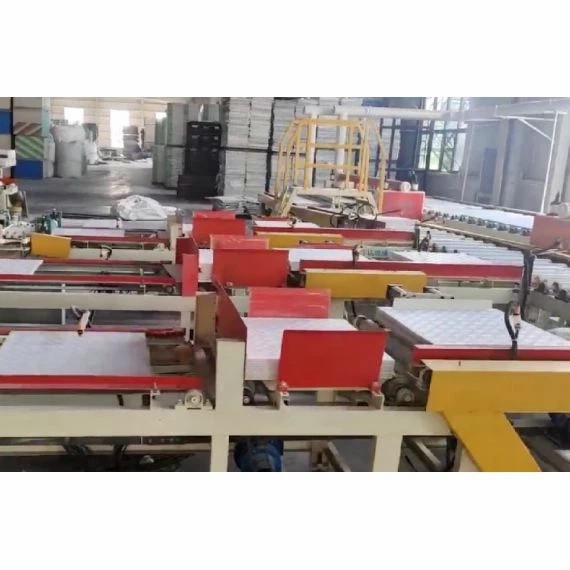

The Automatic PVC Film Laminating Gypsum Machine is a state-of-the-art industrial solution designed for the surface decoration of gypsum boards, calcium silicate boards, and other fireproof composite panels. This equipment automates the complex process of bonding decorative films-such as PVC, wood grain paper, or aluminum foil-to substrate boards, transforming them into high-quality finished ceiling or wall panels.
Ideal for gypsum board manufacturers and furniture factories, this machine ensures high precision, uniform coating, and a durable finish (matte or glossy).
Key Features & Advantages
Fully Automated Operation
Controlled by a sophisticated PLC system, the machine automatically handles board feeding, dust removal, gluing, film application, heating, pressing, and cutting.
01
Uniform Glue Application
Equipped with a precision coating system (featuring dual-motor regulation), it ensures a uniform layer of adhesive, preventing bubbles or delamination.
02
Versatile Material Compatibility
Capable of processing various substrates (plywood, density board, particle board) and laminating materials (PVC film, high-molecular films, wood grain paper).
03
High Efficiency
The continuous production line features a robust chain-and-sprocket or conveyor belt transmission system, ensuring synchronized speed and high output.
04
Superior Finish
Integrated heating and cold/hot pressing mechanisms guarantee a flat, wrinkle-free surface with strong adhesion.
05
Technical Specifications
The following table outlines the standard parameters for our production line. Customization is available based on specific production requirements.
|
Parameter |
Specification |
|
Machine Type |
Automatic PVC Gypsum Board Laminating Line |
|
Applicable Board Size |
1220mm × 2400mm (Standard) |
|
Effective Laminating Width |
1300mm |
|
Production Speed |
Up to 15 meters/minute (Variable Frequency Drive) |
|
Total Power |
Approx. 25-30 KW (System Dependent) |
|
Control System |
PLC / Digital Computer Control |
|
Transmission Mode |
Chain & Sprocket / Conveyor Belt |
|
Finished Product |
Matte, Glossy, or Wood Grain Finish |
Working Principle & Process Flow
The machine operates through a sequential, continuous workflow designed to maximize efficiency and bond strength:
Dust Removal
The raw gypsum board enters the line and passes through a dust cleaning unit to ensure a contaminant-free surface.
Glue Coating
The board moves to the coating station where a uniform layer of adhesive (water-soluble or solvent-based) is applied.
Drying
The glue passes through a drying section to reach the optimal tackiness for bonding.

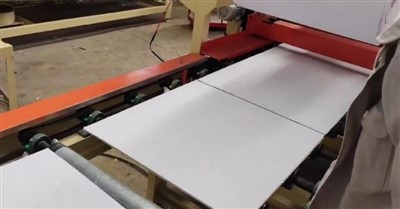

Laminating
The decorative film (PVC/Aluminum foil) is unrolled and precisely aligned over the board.
Pressing (Hot & Cold)
The composite passes through pneumatic pressing rollers and heating/cooling zones to cure the bond and ensure flatness.
Cutting & Stacking
The film is automatically cut to size, and the finished board is stacked for packaging.
Applications
This production line is widely used in the manufacturing of:
- PVC Gypsum Ceiling Tiles: For residential, commercial, and office interiors.
- Decorative Wall Panels: Fireproof and moisture-resistant partition boards.
- Furniture Components: Laminated boards for cabinet making and interior fit-outs.
Why Choose Our Equipment?
Precision Engineering
Designed for high tolerance and consistent quality.
Energy Efficient
Optimized heating and drying systems reduce power consumption.
User-Friendly Interface
Digital controls allow for easy parameter adjustment and monitoring.
After-Sales Support
Comprehensive installation guidance and technical service.
