Hebei Enjoy Technology Co., Ltd. is one of the leading manufacturers and suppliers of fully automatic pvc lamination gypsum machine in China. Please feel free to buy high quality building material machinery made in China here from our factory. Good service and punctual delivery are available.

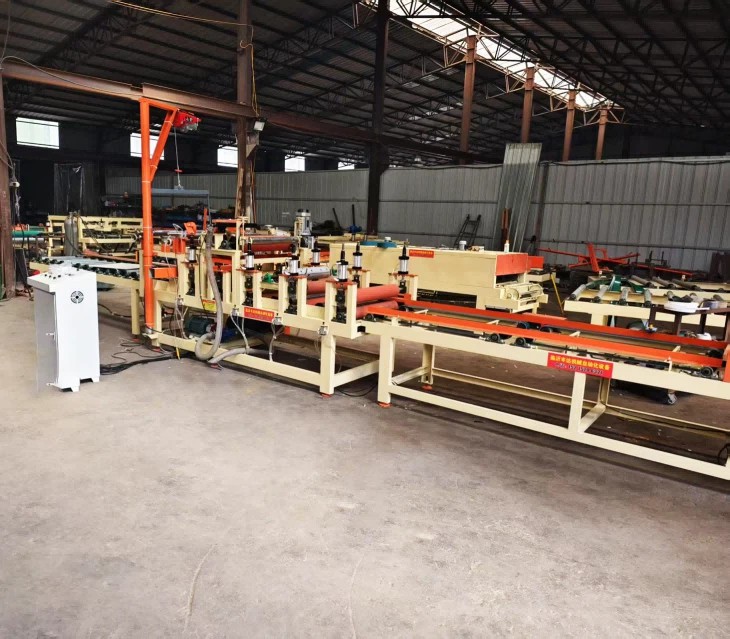

Elevate your production line with our state-of-the-art Fully Automatic PVC Lamination Gypsum Machine. Designed for high-efficiency manufacturing, this machine specializes in surface decoration for gypsum boards, density boards, and various composite panels. By integrating advanced coating, heating, and pressing technologies, it transforms plain boards into high-quality decorative materials with wood grain, marble patterns, or solid colors.
Whether for ceiling tiles or wall panels, our lamination solution ensures durability, aesthetic appeal, and operational efficiency, making it the ideal choice for furniture manufacturers and building material factories.
Key Features & Advantages
Fully Automatic Operation
Equipped with a PLC control system, the machine automates the entire process from feeding to stacking, significantly reducing labor costs and human error.
Uniform Glue Application
Features a precision coating mechanism (roller coating) that ensures an even layer of adhesive (water-soluble or solvent-based), preventing bubbles and delamination.
Advanced Heating & Pressing
Integrates multi-stage heating (infrared or hot air) and pneumatic pressing systems. The combination of hot and cold pressing ensures the PVC film or decorative paper adheres firmly and smoothly.
High-Speed Production
Capable of processing speeds between 5 to 20 meters per minute, depending on the model, maximizing daily output.
Versatile Compatibility
Suitable for a wide range of substrates including gypsum board, MDF, particle board, and fireproof boards. It handles various lamination materials like PVC film, wood veneer, aluminum foil, and non-woven fabrics.
Dust Removal System
Built-in static elimination and dust cleaning units ensure the board surface is pristine before coating, guaranteeing a defect-free finish.
Technical Specifications
|
Parameter |
Specification |
|
Machine Type |
Fully Automatic Flat Laminating Machine |
|
Max. Processing Width |
1300mm / 1320mm (Customizable) |
|
Processing Thickness |
3mm - 12mm |
|
Processing Length |
Unlimited (Continuous feeding) |
|
Working Speed |
5 - 20 m/min (Adjustable via VFD) |
|
Total Power |
6kW - 12kW (Heating system included) |
|
Voltage |
380V / 50Hz (3-Phase) |
|
Glue Type |
Water-soluble glue / Solvent-based glue / PUR Hot Melt |
|
Pressing Method |
Pneumatic Rollers / Hydraulic Press |
|
Overall Dimension |
Approx. 8000mm x 1800mm x 1600mm |
|
Weight |
2000kg - 2600kg |
Workflow Process

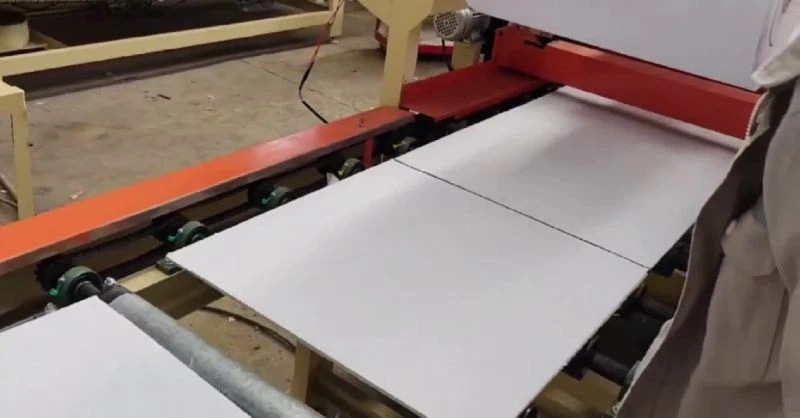

- Automatic Feeding: The substrate board is fed into the machine via a conveyor belt or chain drive system.
- Surface Cleaning: A dust removal brush and static eliminator clean the board surface to ensure optimal adhesion.
- Glue Coating: The board passes through the coating roller where adhesive is applied uniformly.
- Glue Drying: An intermediate heating section evaporates excess moisture/solvent from the glue.
- Lamination: The PVC film or decorative paper is aligned and pressed onto the glued surface.
- Hot & Cold Pressing: The board moves through heated rollers for initial bonding, followed by cold pressing rollers to set the bond firmly.
- Cutting & Stacking: The film is automatically cut, and the finished board is stacked.
Applications
This machine is essential for producing decorative building materials used in:
Interior Decoration
Ceiling tiles (gypsum/PVC), wall panels, and partition boards.
Furniture Manufacturing
Cabinet doors, wardrobe panels, and table tops.
Construction Materials
Fireproof boards, magnesium oxide boards, and calcium silicate boards.
Why Choose Our Machine?
- Cost-Effective: Low glue consumption and high automation reduce operational costs.
- Reliable Performance: Robust construction with high-quality components (e.g., frequency converters, pneumatic parts).
- Customization: We offer tailored solutions for double-sided lamination and specific board sizes to meet your factory's unique requirements.
- After-Sales Support: Comprehensive installation guidance and technical support to ensure your production line runs smoothly.
- Note: Specifications are subject to change based on custom requirements. Contact us today for a detailed quotation and factory layout design.
