Hebei Enjoy Technology Co., Ltd. is one of the leading manufacturers and suppliers of pvc gypsum ceiling machine in China. Please feel free to buy high quality building material machinery made in China here from our factory. Good service and punctual delivery are available.

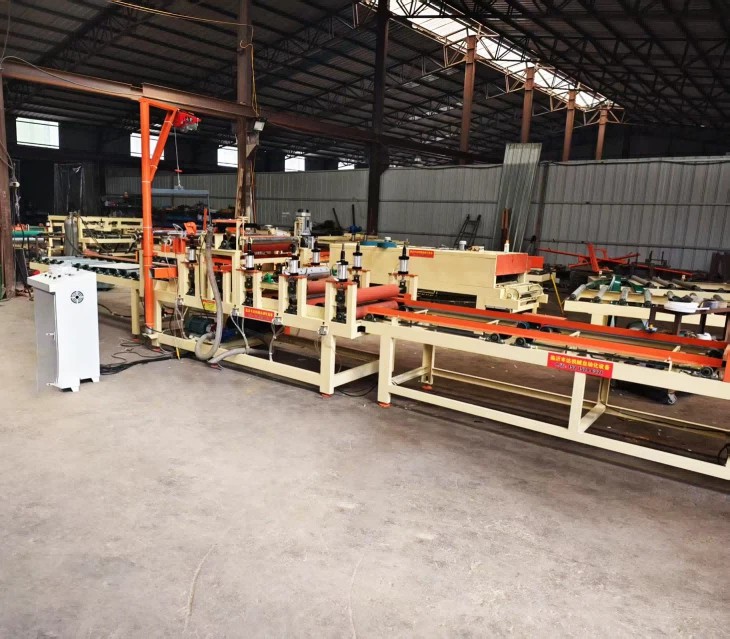

The PVC Gypsum Ceiling Board Laminating Machine (also known as the PVC Gypsum Board or PVC Film Laminating Machine) is a specialized piece of industrial equipment designed for the surface decoration of building materials.
It is primarily used to laminate PVC film, wood grain paper, or high-molecular films onto substrates such as gypsum boards, fireproof boards, plywood, density boards (MDF), and particle boards. This machine transforms raw boards into high-quality decorative ceiling tiles or wall panels with either a glossy or matte finish.
Key Features & Advantages
Our machine is engineered for high efficiency and precision, suitable for both large-scale factories and individual processing units.
Automated Operation
Features a fully automatic computerized control system (PLC) that manages the entire process from feeding to discharging, ensuring consistent quality and reducing labor costs.
01
Uniform Glue Application
Equipped with a precision coating mechanism (often with dual motors or servo control) to ensure the adhesive is applied evenly, preventing bubbles or peeling.
02
High-Speed Production
Utilizes a robust chain-and-sprocket or seamless conveyor transmission system for stable, high-speed continuous production.
03
Versatile Finishing
Capable of producing various finishes (glossy, matte, wood grain) suitable for modern interior design needs.
04
Integrated Functions
Combines dust removal, glue coating, drying, laminating, hot/cold pressing, and automatic cutting into one compact production line.
05
Technical Workflow
The machine automates the complex lamination process through the following stages:
1. Dust Removal: The substrate board is cleaned by a dust suction unit to ensure a contaminant-free surface.
2. Glue Coating: A uniform layer of adhesive (water-soluble or solvent-based) is applied to the board surface.
3. Drying: The glue is dried to the optimal tackiness for bonding.
4. Laminating: The PVC film or decorative paper is precisely aligned and applied to the board.
5. Pressing: The board passes through cold press and hot press sections (and a return pressure mechanism) to ensure a firm, flat bond without wrinkles.

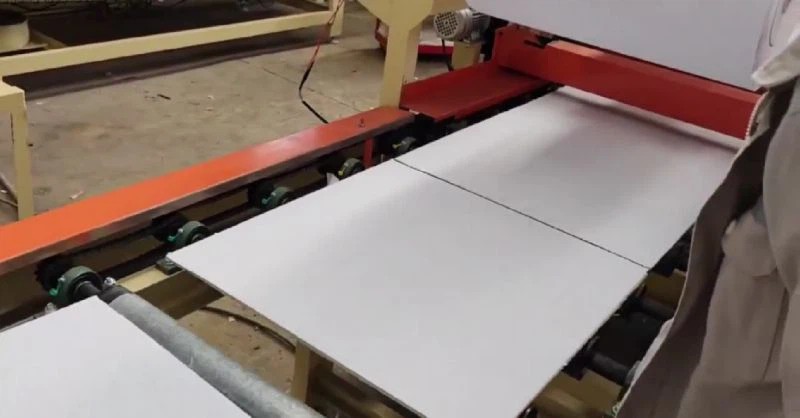

6. Cutting & Stacking: The film is automatically cut, and the finished board is stacked.
Technical Specifications
|
Parameter |
Specification |
|
Machine Type |
Automatic PVC Gypsum Board Laminating Machine |
|
Applicable Material |
Gypsum Board, Plywood, MDF, Particle Board, Fireproof Board |
|
Laminating Material |
PVC Film, Wood Grain Paper, High-molecular Film |
|
Max. Working Width |
1300mm - 1350mm (Customizable) |
|
Board Thickness |
3mm - 25mm |
|
Transmission System |
Chain/Sprocket or Conveyor Belt |
|
Control System |
Computerized Digital Control (PLC) |
|
Total Power |
15kW - 30kW (Depending on configuration) |
|
Machine Weight |
Approx. 1800kg - 2900kg |
|
Dimensions (L x W x H) |
Approx. 7500mm x 1800mm x 1820mm |
Applications
This production line is essential for manufacturers in the construction and furniture industries.
Ceiling Tiles
Production of PVC-faced gypsum ceiling tiles (600x600mm, 600x1200mm, etc.) for offices, hospitals, and schools.
Interior Decoration
Creating decorative wall panels and partition boards.
Furniture Manufacturing
Surface lamination for cabinet doors and furniture components.
Why Choose Our Machine?
High Precision: Ensures the film is flat and wrinkle-free.
Energy Efficient: Optimized heating and drying systems reduce power consumption.
Reliable Support: Comprehensive after-sales service including installation, debugging, and training.
Contact Us for a Quote
Ready to upgrade your production line? Contact us today for detailed pricing and technical consultation regarding the PVC Gypsum Ceiling Machine.
