Hebei Enjoy Technology Co., Ltd. is one of the leading manufacturers and suppliers of pvc coated gypsum ceiling tiles machine in China. Please feel free to buy high quality building material machinery made in China here from our factory. Good service and punctual delivery are available.

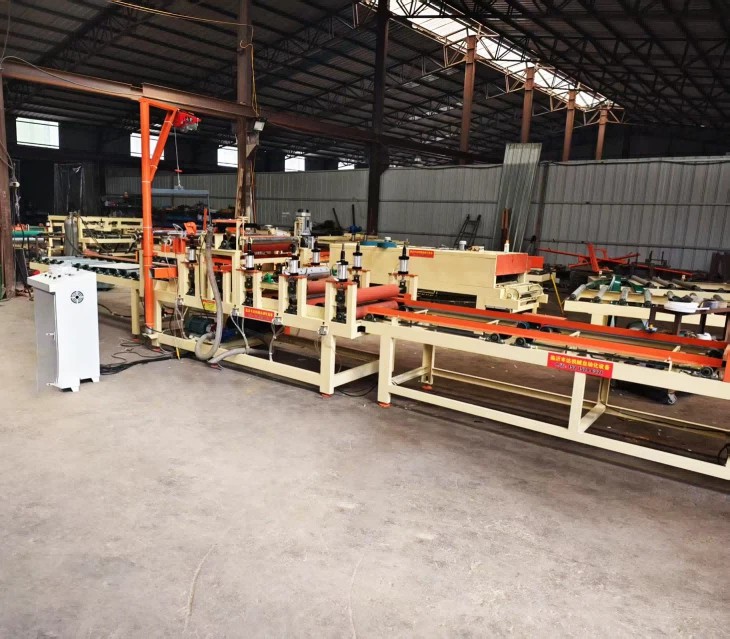

The PVC Coated Gypsum Ceiling Tiles Machine, also known as a PVC Gypsum Board Laminating Machine or Film Laminating Machine, is a specialized piece of industrial equipment designed for the surface decoration of gypsum boards. It automates the process of bonding PVC films, wood grain paper, or aluminum foil onto gypsum substrates to produce high-quality, durable ceiling tiles and wall panels.
This machinery is essential for manufacturers producing moisture-proof, fire-resistant, and aesthetically pleasing decorative boards for residential, commercial, and industrial construction projects.
Working Principle and Process Flow

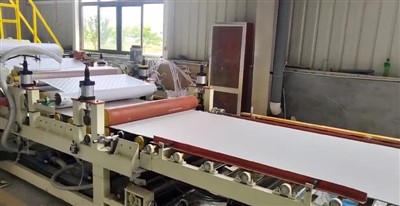

The machine operates on a continuous production line principle, utilizing a chain and sprocket transmission system or a conveyor belt system to ensure synchronized movement. The automated workflow typically includes the following stages:
Feeding and Cleaning
Raw gypsum boards are fed into the machine (manually or automatically). A dust removal and cleaning unit cleans the surface to ensure optimal adhesion.
Glue Application
The board passes through a coating unit where a uniform layer of adhesive (water-soluble or solvent-based) is applied. Advanced models feature automatic glue supply and precise roller adjustments to ensure even coating.
Drying
The applied glue passes through a drying section to reach the appropriate tackiness for bonding.
Laminating
The PVC film or decorative paper is unrolled and precisely aligned with the board. Pneumatic or roller pressing mechanisms bond the film to the gypsum board.
Pressing and Cooling
The laminated board goes through cold and hot pressing rollers to ensure a firm, bubble-free bond.

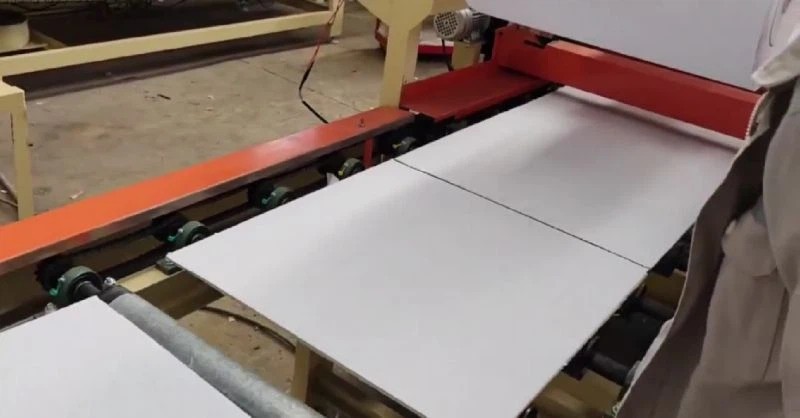

Cutting and Stacking
The continuous film is automatically cut, and the finished boards are conveyed to a stacking unit. Some lines include an automatic cutting station to slice large boards into standard ceiling tile sizes (e.g., 600x600mm).
Key Features and Technical Specifications
Modern PVC coating machines are designed for high efficiency and precision. Below are typical specifications and features:
- Automation Level: Fully automatic computer control (PLC) with digital speed regulation.
- Transmission: Chain and sprocket or belt drive systems for stable speed.
- Processing Speed: Variable speed control, typically ranging from 0 to 15 meters per minute.
- Board Compatibility: Suitable for standard gypsum boards (e.g., 1220x2400mm), as well as plywood, MDF, and particle boards.
- Laminating Materials: PVC film, wood grain paper, aluminum foil, and high-molecular films.
- Precision: Equipped with edge correction devices and uniform coating mechanisms to prevent wrinkles and ensure high aesthetic quality.
- Power Supply: Typically requires industrial power (e.g., 380V), with total power consumption varying by model (e.g., 4.5KW to 50KW for full lines).
Application Scope
This machinery is widely used in the building materials industry, specifically for:
Ceiling Tiles
Manufacturing decorative, moisture-proof gypsum ceiling tiles for offices, hotels, and homes.
Wall Panels
Producing interior wall cladding and partition boards.
Furniture Industry
Surface lamination for furniture components using various substrates like particle board or density board.
Advantages of the Equipment
- High Efficiency: Continuous production capability significantly increases output compared to manual lamination.
- Quality Consistency: Automated glue application and pressing ensure a flat, smooth surface without bubbles or delamination.
- Versatility: Capable of handling different film types and board thicknesses.
- Cost-Effective: Reduces labor costs and material waste through precise control systems.
