Hebei Enjoy Technology Co., Ltd. is one of the leading manufacturers and suppliers of pvc gypsum board production lines in China. Please feel free to buy high quality building material machinery made in China here from our factory. Good service and punctual delivery are available.

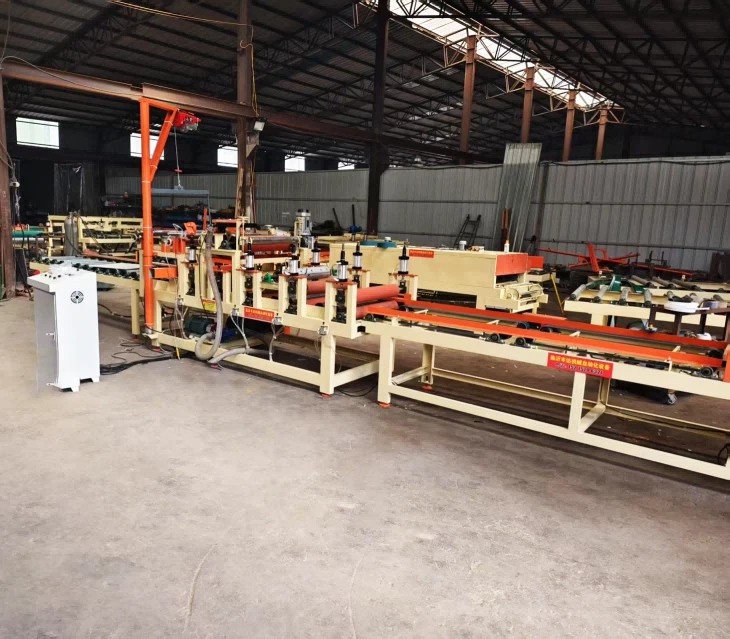

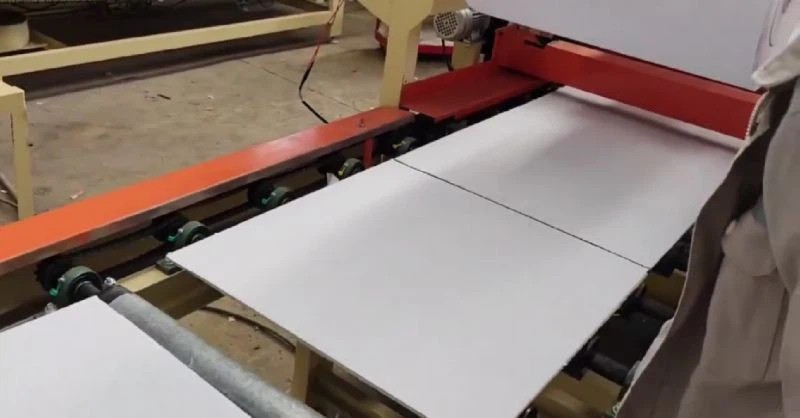

The PVC Gypsum Board Production Line is a sophisticated manufacturing system designed to produce high-quality, decorative gypsum boards laminated with a Polyvinyl Chloride (PVC) film. This production line transforms standard paper-faced gypsum boards into value-added decorative panels widely used in modern interior design for ceilings and partition walls.
By integrating advanced lamination technology, this line produces boards that are not only aesthetically pleasing but also highly durable, moisture-resistant, and easy to clean. The system is engineered for high automation, ensuring consistent quality, precise edge finishing, and efficient mass production.
Key Features & Advantages
High Automation
The line typically features a PLC (Programmable Logic Controller) control system, allowing for "one-key" start-up and real-time monitoring of production parameters. This reduces labor costs and minimizes human error.
01
Versatile Lamination
Capable of applying various types of PVC films, colors, and patterns to meet diverse market demands. Some advanced lines can simultaneously apply PVC film and aluminum foil.
02
Integrated Finishing
The production line often includes integrated edge banding and trimming systems, ensuring the final product is finished and ready for installation immediately upon exiting the line.
03
Eco-Friendly Process
Utilizes environmentally friendly adhesives and heating methods (such as thermal oil or electric heating) to ensure a safe production environment.
04
High Efficiency
Designed for continuous production with high-speed conveying systems, capable of processing thousands of square meters per day depending on the configuration.
05
Technical Process Flow
The production process is a seamless sequence of operations designed to bond the PVC film to the gypsum board substrate perfectly.
1. Feeding & Infeed
Standard gypsum boards are loaded onto the infeed conveyor.
An automatic alignment system ensures the boards are centered before entering the coating section.
2. Glue Application (Coating)
The boards pass through a precision glue coater (roller coater).
A uniform layer of high-strength adhesive is applied to the surface of the board. The thickness of the glue is automatically controlled to prevent waste and ensure strong bonding.
3. Film Lamination
The PVC film is unrolled from a tension-controlled release unit.
A laminating roller presses the film onto the glued surface of the gypsum board.
Key Technology: Precise temperature and pressure control are applied here to ensure there are no air bubbles, wrinkles, or delamination.
4. Curing & Heating
The laminated boards enter a heating section or curing tunnel.
This step activates the adhesive and ensures the PVC film bonds permanently to the substrate.
5. Trimming & Edge Banding
Once the film is adhered, the excess material on the sides is automatically trimmed off.
The line can also apply edge banding (PVC or aluminum) to the four sides of the board for a complete finish.
6. Cooling & Cutting
The boards pass through a cooling section to set the adhesive and film.
An automatic cutting system (saw) trims the boards to the exact required length and width.
7. Stacking & Packaging
Finished boards are automatically stacked.
The stack is then prepared for shrink-wrapping or boxing for shipment.
Main Components of the Production Line
|
Component |
Function |
|
Infeed Conveyor |
Transports raw gypsum boards into the machine. |
|
Glue Coater |
Applies adhesive evenly to the board surface. |
|
Film Unwinder |
Holds and feeds the PVC film roll with tension control. |
|
Laminating Machine |
The core unit where heat and pressure bond the film to the board. |
|
Edge Trimmer |
Cuts off excess film from the board edges. |
|
Automatic Stacker |
Collects finished boards for packaging. |
|
PLC Control Panel |
The "brain" of the line, controlling speed, temperature, and glue volume. |
Applications
The PVC Gypsum Boards produced by this line are ideal for:
Residential
Living rooms, bedrooms, and kitchens (due to moisture resistance).
Commercial
Offices, hotels, shopping malls, and hospitals.
Public Spaces
Schools, airports, and exhibition centers.
Conclusion
Investing in a PVC Gypsum Board Production Line offers manufacturers a strategic advantage. It allows for the vertical integration of production-turning raw gypsum boards into high-margin decorative finish materials. With its robust construction, user-friendly automation, and ability to produce premium building materials, this production line is a vital asset for the modern construction material industry.
