Hebei Enjoy Technology Co., Ltd. is one of the leading manufacturers and suppliers of automatic pvc gypsum ceiling lamination machine in China. Please feel free to buy high quality building material machinery made in China here from our factory. Good service and punctual delivery are available.
This machine is a specialized piece of industrial equipment designed for the continuous lamination of decorative films onto gypsum boards. Its primary function is to bond materials like PVC film, wood grain paper, or aluminum foil to the surface of gypsum ceiling tiles, creating finished decorative panels. The process is highly automated, integrating coating, lamination, pressing, and cutting into a single, streamlined production line.
Key Features and Advantages
High Automation
The machine performs a continuous sequence of operations-including automatic coating, film application, pressing, and cutting-which significantly reduces the need for manual labor and increases production efficiency.
01
Superior Bonding Quality
Utilizing pneumatic or hydraulic pressing systems, the machine ensures uniform pressure across the board. This results in a strong, durable bond with no air bubbles or wrinkles, guaranteeing a high-quality finish.
02
Versatility
It is capable of laminating a wide range of decorative materials, such as various colors and patterns of PVC film, wood grain paper, and aluminum foil, onto different types of boards including gypsum, MDF, and fireproof boards.
03
High-Speed Production
With advanced frequency control systems, the machine can operate at high speeds (up to 15 meters per minute for cutting), ensuring a high output and strong production continuity.
04
Integrated Cutting and Stacking
Many production lines include automatic cutting and stacking units, which precisely cut the large laminated boards into standard ceiling tile sizes (e.g., 600x600mm, 500x500mm) and automatically stack the finished products.
05
Technical Specifications
The following specifications are representative of a standard model.
|
Parameter |
Specification |
|
Applicable Board Size |
1220 x 2400 mm |
|
Lamination Width |
Up to 1300 mm |
|
Finished Product Sizes |
Common sizes like 600x600 mm, 600x1200 mm |
|
Cutting Speed |
Up to 15 meters/minute |
|
Total Power |
Varies by model (e.g., 4.5KW for the laminator, 17.15KW for the cutter) |
|
Control System |
Frequency control for synchronized operation |
|
Adhesive Type |
Specialized glue for PVC film or aluminum foil |
|
Machine Dimensions (L x W x H) |
Approx. 12600 x 1950 x 1600 mm (Laminator) |
Operational Process
The production line typically follows this sequence:

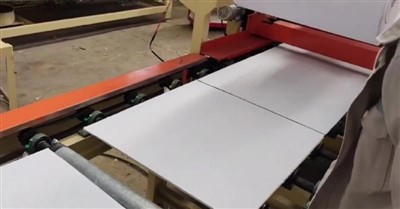

- Board Feeding: A raw gypsum board is fed onto the conveyor, either manually or by an automatic feeder.
- Dust Removal: The board surface is cleaned to remove any dust, ensuring optimal adhesion.
- Adhesive Application: A uniform layer of specialized glue is applied to the surface of the board.

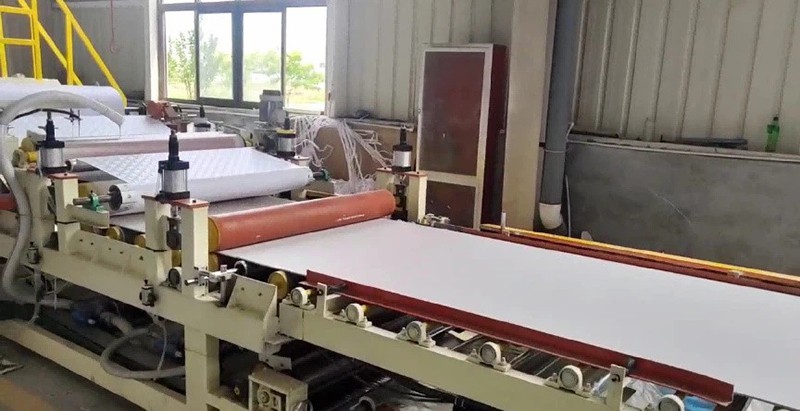

- Film Lamination: The decorative film (PVC, wood grain, etc.) is unrolled from a large spool and precisely laid over the adhesive-coated board.
- Pressing: The board and film pass through a pneumatic or hydraulic press, which applies heat and pressure to bond them together securely.
- Cutting: The continuous laminated board is automatically cut into individual ceiling tiles of the desired size.

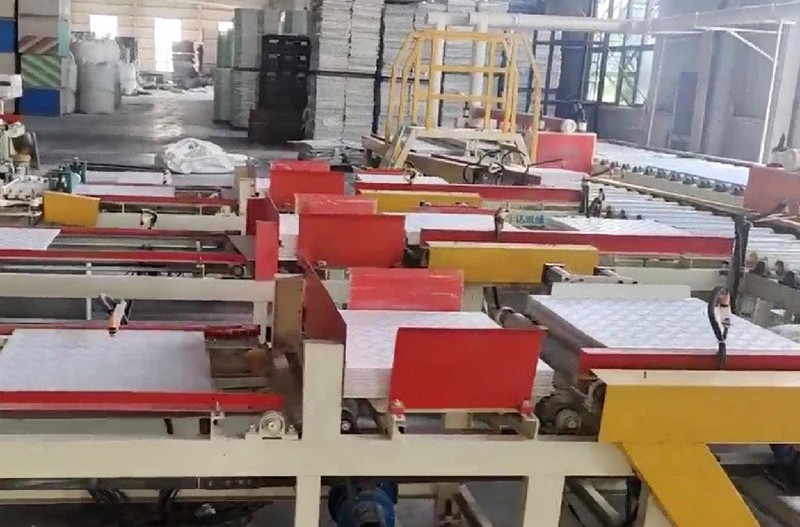

- Stacking: The finished tiles are automatically stacked and prepared for packaging.
Applications
The machine is ideal for manufacturers of building materials and is used to produce decorative ceiling tiles and wall panels for a variety of settings, including:
- Residential homes and apartments
- Commercial office buildings
- Hotels and restaurants
- Hospitals and schools
- Shopping malls and public spaces
