Hebei Enjoy Technology Co., Ltd. is one of the leading manufacturers and suppliers of pvc gypsum ceiling production equipment in China. Please feel free to buy high quality building material machinery made in China here from our factory. Good service and punctual delivery are available.

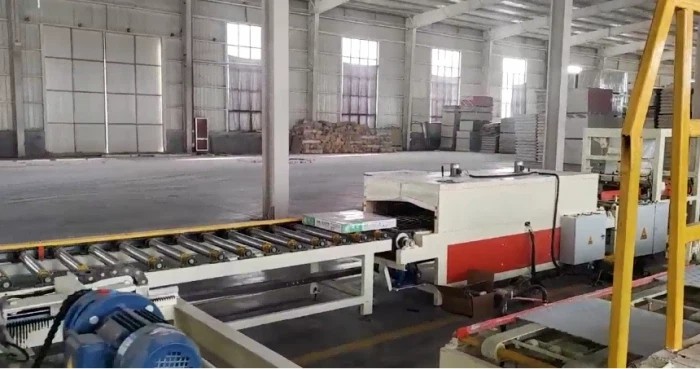

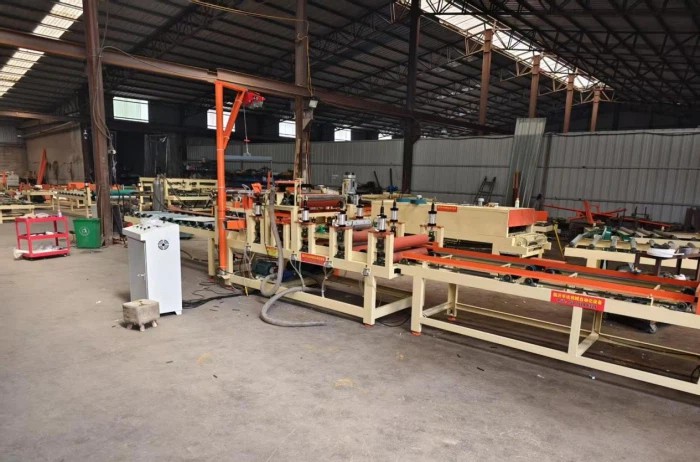

Our PVC Gypsum Ceiling Production Line is a state-of-the-art, fully automated system designed for the efficient manufacturing of high-quality PVC laminated gypsum ceiling tiles. This equipment transforms standard paper gypsum boards into durable, moisture-resistant, and aesthetically pleasing ceiling solutions by automatically laminating PVC decorative film on the front and aluminum foil on the back.
Ideal for producing "Three-Proof" boards (waterproof, fireproof, and dustproof), this machinery is essential for modern construction material factories aiming to produce tiles for hospitals, laboratories, supermarkets, and humid environments.
Key Features & Advantages
Fully Automated Operation
The production line features a PLC control system that manages the entire process from start to finish, including:
Automatic Gluing
Precision application of adhesive (water-soluble or solvent-based).
01
Lamination
Accurate alignment and bonding of PVC film.
02
Hot & Cold Pressing
Ensures a flat, bubble-free, and durable finish.
03
Cutting
Automatic cutting of the film to size.
04
High Efficiency & Precision
Chain/Sprocket Transmission: Ensures stable and consistent speed throughout the production process.
Uniform Coating: Advanced roller mechanisms guarantee an even layer of glue, preventing warping or delamination.
High Speed: Capable of producing ceiling tiles at speeds ranging from 2 to 27 meters per minute, depending on the configuration.
Versatile Application
This equipment is not limited to gypsum boards. It can also process:
- Density boards (MDF)
- Plywood and particle boards
- Fireproof boards
- Glass and acrylic sheets
Superior Product Quality
The resulting PVC gypsum ceiling tiles feature:
Moisture Resistance
Suitable for high-humidity areas (up to 90% RH).
Fire Resistance
Compliant with GB8624 standards (Class B1/A2).
Aesthetic Variety
Supports wood grain, marble grain, and custom printed patterns.
Technical Specifications
|
Parameter |
Specification |
|
Machine Type |
Fully Automatic PVC Laminating Machine |
|
Max. Working Width |
1300mm / 1320mm (Customizable) |
|
Processing Speed |
2 - 27 m/min (Adjustable) |
|
Power Supply |
380V / 50Hz (3-Phase) |
|
Total Power |
20kW - 30kW (Varies by model) |
|
Applicable Material |
PVC Film, Wood Veneer, Aluminum Foil |
|
Board Thickness |
3mm - 12mm (Adjustable) |
|
Overall Dimension |
Approx. 20m (L) x 1.8m (W) x 1.9m (H) |

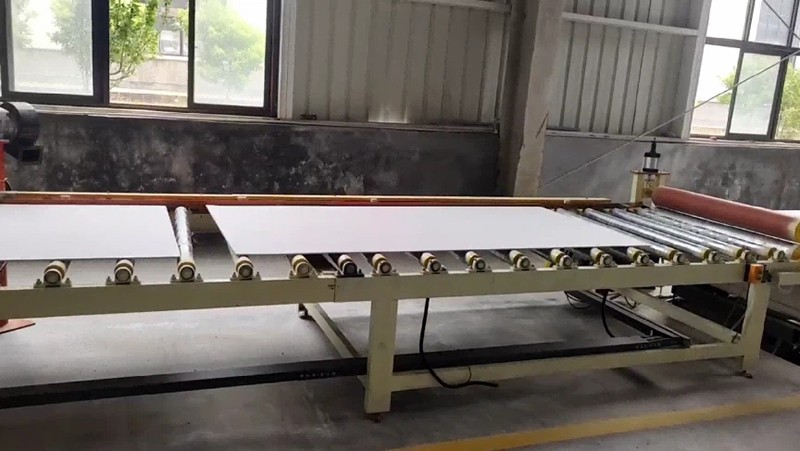

Production Process Flow
Dust Removal
The raw gypsum board is cleaned via a vacuum dust collector to ensure a pristine surface.
Glue Application
The board passes through the coating machine where adhesive is applied uniformly.
Drying
The glue is pre-dried to reach the optimal tackiness.
Lamination
The PVC film is rolled onto the board with precise alignment.
Pressing
The board goes through hot and cold pressing rollers to bond the layers firmly.
Finishing
The film is cut, and the finished tile is stacked.
Final Product Applications
The PVC Gypsum Ceiling Tiles produced by this line are widely used in:
Healthcare: Hospitals, operating rooms, and clinics (hygienic and cleanable).
Commercial: Supermarkets, hotels, and swimming pools (moisture resistant).
Industrial: Electronic workshops, pharmaceutical factories, and food processing plants.
Public Spaces: Subway stations and airports.
Why Choose Our Equipment?
Turnkey Solution
We provide comprehensive technical support and installation guidance.
Durability
Built with high-quality steel and components for long-term industrial use.
Customization
We can tailor the machine specifications to match your specific factory layout and production capacity requirements.
