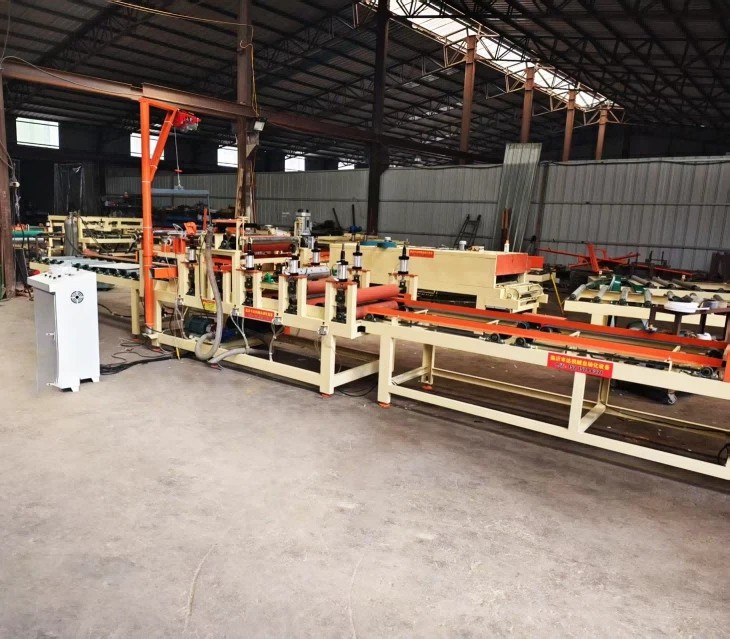

The PVC Laminated Gypsum Ceiling Tile Machine (also known as a PVC Gypsum Board Laminating Machine or Surface Pasting Machine) is a specialized piece of industrial equipment designed for the surface decoration of gypsum boards.
This machine automates the process of bonding decorative materials-such as PVC film, wood veneer, aluminum foil, or high-molecular films-onto the surface of gypsum boards. The result is a high-quality, durable, and aesthetically pleasing ceiling tile or wall panel suitable for residential, commercial, and industrial applications.
Key Features & Advantages
High Automation
Equipped with a PLC (Programmable Logic Controller) system, allowing for precise control over speed, temperature, and pressure.
01
Versatile Application
Capable of processing various substrates including gypsum board, density board (MDF), plywood, and particle board.
02
Uniform Coating
Advanced glue spreading mechanisms ensure an even application of adhesive, preventing bubbles or delamination.
03
High Efficiency
Continuous production capability with features like automatic dust removal, heating, pressing, and cutting.
04
Finished Quality
Produces boards with smooth surfaces, consistent patterns, and high gloss or matte finishes as required.
05
Production Process Workflow
The machine typically operates through a continuous, multi-stage process:
- Automatic Feeding & Dust Removal: The raw gypsum board is fed into the line, and a dust cleaning unit removes surface debris to ensure optimal adhesion.
- Glue Application (Coating): A precision roller system applies a uniform layer of adhesive (water-soluble or solvent-based) to the board surface.
- Drying: The glue passes through a drying section to reach the optimal tackiness for bonding.

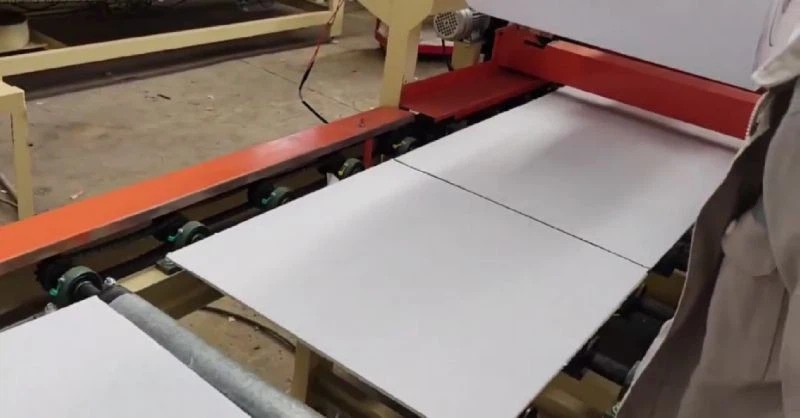

- Laminating (Pasting): The decorative film (PVC/Aluminum foil) is unrolled and precisely aligned and pressed onto the glued board surface.
- Pressing (Hot/Cold): The board passes through hot and cold pressing units (hydraulic or roller press) to cure the bond and ensure a flat, wrinkle-free finish.
- Automatic Cutting: The continuous film is cut to size, or the boards are trimmed to standard dimensions (e.g., 600x600mm, 600x1200mm).
- Stacking: The finished laminated tiles are automatically stacked for packaging.
Technical Specifications (Typical)
|
Parameter |
Specification |
|
Machine Type |
Automatic PVC Laminating Line |
|
Max. Working Width |
1220mm - 1300mm (Customizable) |
|
Applicable Board Size |
1220 x 2400mm (Standard) |
|
Transmission Mode |
Chain/Sprocket or Belt Drive |
|
Total Power |
Approx. 20kW - 50kW (Depending on configuration) |
|
Control System |
PLC / Frequency Converter |
|
Finished Product |
PVC Laminated Gypsum Ceiling Tiles |
Scope of Application
This machinery is essential for manufacturers producing:
PVC Gypsum Ceiling Tiles
Popular in markets across the Middle East, Africa, and Southeast Asia.
Decorative Wall Panels
For interior design and partition walls.
Furniture Boards
Laminated boards used in cabinet making.
