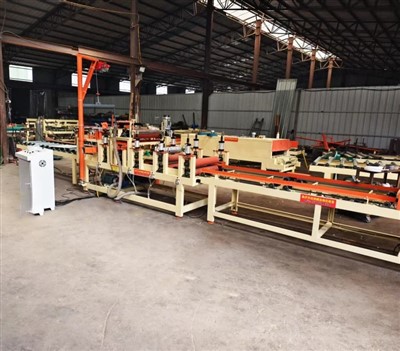

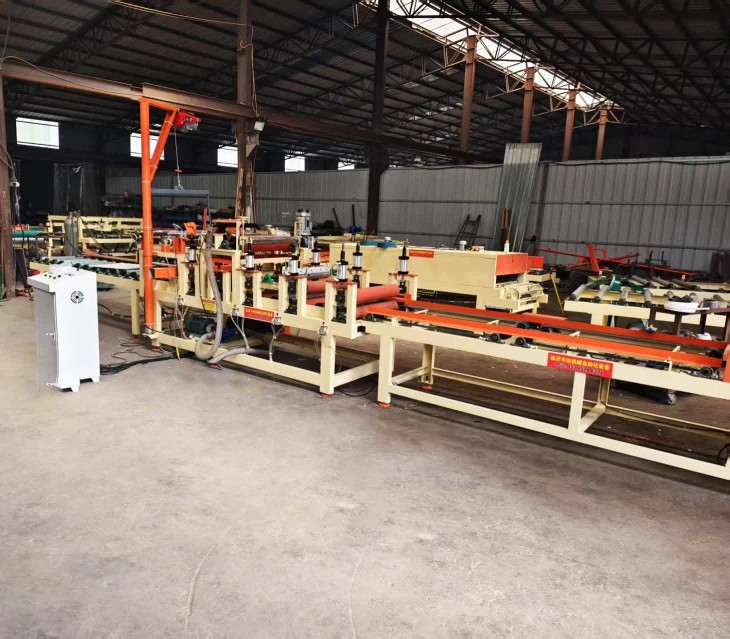

The Automatic PVC Gypsum Board Laminating Machine is a specialized piece of industrial equipment designed for the surface decoration of building materials. Also known as a PVC film laminating machine or surface surfacing machine, it is primarily used to bond decorative layers-such as PVC film, aluminum foil, wood grain paper, or high-molecular films-onto substrates like gypsum boards, density boards,particle boards, and plywood.
This machinery transforms plain boards into finished decorative panels with finishes ranging from matte to high-gloss. It is an essential asset for furniture manufacturers, artificial board factories, and construction material processing facilities, offering a streamlined solution for producing high-quality decorative boards used in interior design and architectural applications.
Working Principle and Process Flow
The machine operates on a continuous, automated cycle, typically controlled by a PLC (Programmable Logic Controller) system to ensure precision and consistency. The production process generally follows these sequential steps:
Substrate Feeding & Cleaning
The raw board is fed into the machine, where a dust removal and vacuuming mechanism cleans the surface to ensure optimal adhesion.
Glue Application
A precision coating system applies a uniform layer of adhesive (water-soluble or solvent-based) onto the board surface. Advanced models feature automatic glue supply and roller adjustment to maintain consistent thickness.
Drying
The glued surface passes through a drying section to bring the adhesive to the correct tacky state for bonding.

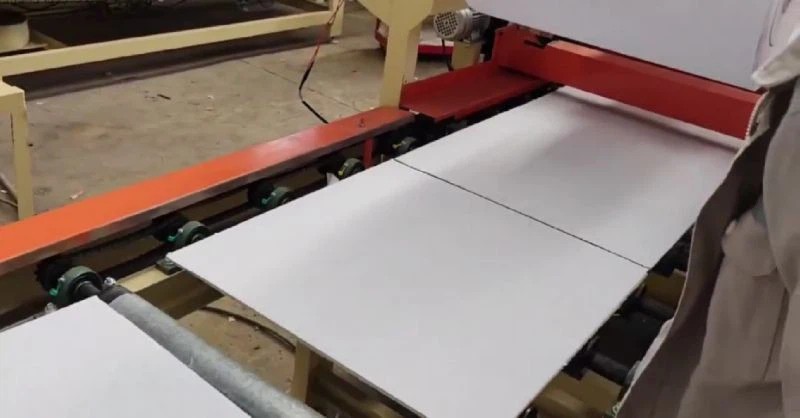

Laminating
The decorative film (PVC or aluminum foil) is unrolled and precisely aligned. It is then pressed onto the board, often using pneumatic composite rollers to initiate the bond.
Pressing & Curing
The board moves through a series of pressing stages, including cold pressing, hot pressing, and return pressure mechanisms. This ensures the film is firmly and smoothly attached without bubbles or wrinkles.
Cutting & Stacking
Once the lamination is complete, an automatic cutting mechanism trims the excess film. The finished boards are then conveyed for stacking or further processing, such as edge sealing.
Key Features and Technical Highlights
Modern laminating machines are engineered for high efficiency and precision. Key technical characteristics include:
- Automated Control: Equipped with digital control systems and frequency conversion speed regulation, allowing for synchronized operation of the transmission, coating, and laminating sections.
- Precision Coating: The gluing mechanism often utilizes independent motors and servo systems to adjust roller gaps, ensuring an even application of glue and reducing material waste.
- Versatile Transmission: The equipment typically employs a robust chain-and-sprocket transmission system or a gap-free conveyor belt system to ensure stable movement of boards, including thin or delicate substrates.
- High-Pressure Bonding: The integration of hot and cold press units guarantees a durable bond, preventing delamination and ensuring the surface remains flat and smooth.
- Customization: Machines can be configured with different heating methods and pressure settings to accommodate various types of films, including PVC, wood veneer, and aluminum foil.
Applications and End Products
The primary application of this machine is the production of decorative building materials. The resulting products are widely used in:
Ceiling Systems
Manufacturing PVC laminated gypsum ceiling tiles (e.g., 600x600mm, 600x1200mm) for offices and commercial spaces.
Interior Wall Panels
Creating decorative wall cladding with wood grain or stone textures.
Furniture Components
Producing finished surfaces for cabinet doors, partitions, and furniture panels.
Partition Walls
Surface finishing for drywall and partition boards used in residential and commercial construction.
Product Specifications
The following table outlines typical specifications for a standard industrial model (values may vary by specific model and manufacturer):
|
Parameter |
Specification |
|
Machine Type |
Automatic PVC Film Laminating Machine |
|
Applicable Board Size |
Standard 1220mm x 2400mm (Customizable) |
|
Effective Laminating Width |
Up to 1300mm |
|
Transmission Mode |
Chain drive / Conveyor belt |
|
Total Power |
Approx. 4.5kW - 50kW (depending on line configuration) |
|
Production Speed |
Variable (Frequency controlled), up to 15m/min for cutting lines |
|
Machine Dimensions |
Approx. 12,600mm (L) x 1,950mm (W) x 1,600mm (H) |
|
Finished Product |
High-gloss or Matte decorative boards |
