Hebei Enjoy Technology Co., Ltd. is one of the leading manufacturers and suppliers of pvc laminated gypsum board machine in China. Please feel free to buy high quality building material machinery made in China here from our factory. Good service and punctual delivery are available.

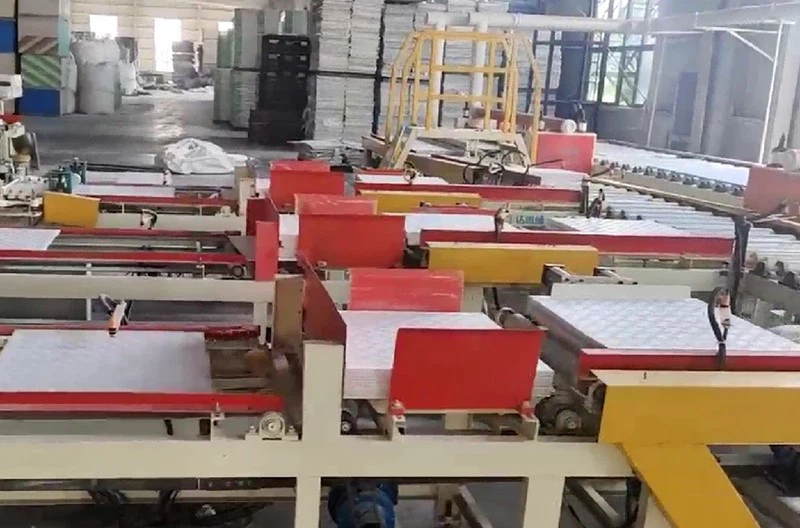

Our advanced production line is specifically designed for the continuous manufacturing of high-quality PVC gypsum ceiling tiles. Integrating cutting-edge automation technology, this line ensures precise lamination of PVC film onto gypsum boards, delivering superior moisture resistance, aesthetic appeal, and durability. Ideal for modern construction projects, our machinery supports high-volume output while maintaining consistent product quality.
Technical Specifications
We offer customizable configurations to meet specific production requirements. Below are the standard specifications for our automatic production lines:
|
Parameter |
Specification |
|
Product Name |
PVC Gypsum Ceiling Tiles Production Line |
|
Raw Material |
Gypsum Board + PVC Film (0.05mm - 0.20mm) |
|
Production Speed |
10 - 30 meters/minute (Adjustable) |
|
Board Thickness |
7mm - 15mm |
|
Board Width |
600mm / 1200mm (Standard sizes) |
|
Total Power |
45kW - 80kW (Depending on configuration) |
|
Voltage |
380V / 50Hz / 3-Phase (Customizable) |
|
Control System |
PLC Automatic Control with Touch Screen |
|
Workers Required |
2-3 persons per shift |
Key Features & Advantages
Our production line stands out in the market due to its robust design and intelligent control systems:
Fully Automatic Operation
Equipped with a sophisticated PLC control system, the line automates the feeding, gluing, laminating, pressing, and cutting processes, significantly reducing labor costs.
Precision Lamination
Ensures bubble-free adhesion between the PVC film and the gypsum board. The system handles various film types, including embossed, high-gloss, and printed PVC films.
High Durability
The produced tiles are moisture-proof, fire-resistant, and easy to clean, making them perfect for humid environments like kitchens and bathrooms.
Versatile Design
Capable of producing tiles with various surface patterns and colors (e.g., marble, wood grain, plain white) to match modern interior design trends.
Energy Efficient
Optimized heating and pressing systems reduce energy consumption without compromising production speed.
Note
Our machinery is compatible with standard gypsum board sizes and can be integrated with existing board manufacturing plants.
Production Process Flow
The production line operates through a seamless, multi-stage process:
Feeding: Raw gypsum boards are automatically fed onto the conveyor belt.
Glue Application: A high-precision roller applies a uniform layer of adhesive to the board surface.
PVC Film Lamination: The PVC film is unrolled and laminated onto the glued surface under controlled tension.
Hot Pressing: The board passes through a heating and pressing unit to ensure firm bonding and smooth finishing.
Cooling & Trimming: The laminated board is cooled and trimmed to exact dimensions.
Stacking: Finished PVC gypsum ceiling tiles are automatically stacked for packaging.
Applications
The PVC gypsum ceiling tiles produced by this line are widely used in:
Residential Buildings
Living rooms, bedrooms, kitchens, and bathrooms.
Commercial Spaces
Hotels, shopping malls, offices, and restaurants.
Public Facilities
Hospitals, schools, and airports where hygiene and moisture resistance are critical.
Packaging & Shipping
- Packaging: The production line output is typically packed in wooden crates or pallets with protective foam to prevent damage during transit.
- Delivery Time: 30-45 days after receiving the deposit.
- Warranty: 1 Year for core components (motor, PLC, gear).
- After-Sales Service: We provide online technical support and video tutorials for installation and operation.
