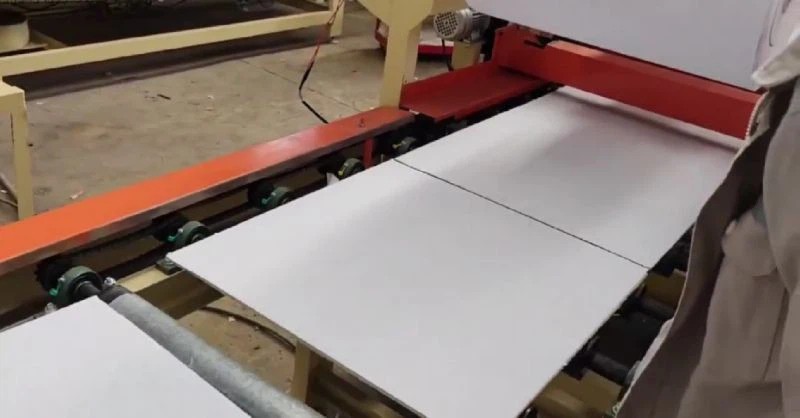

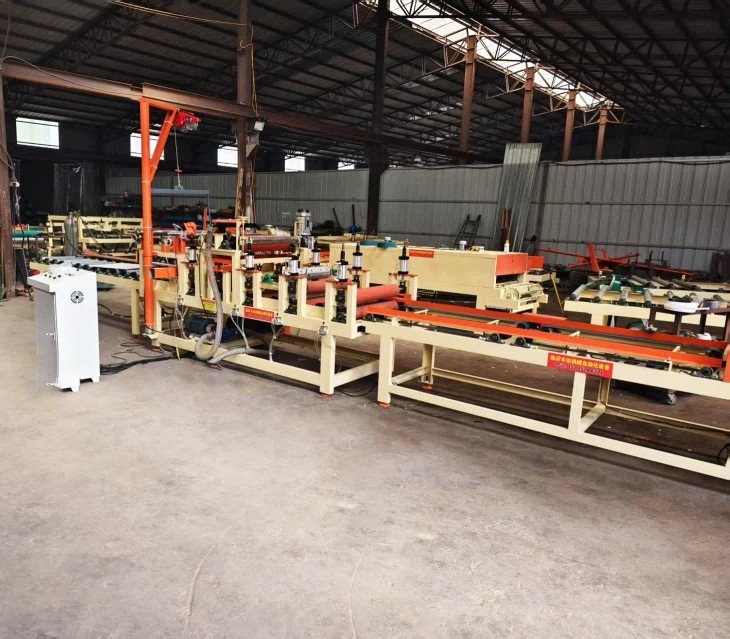

The High-Speed PVC Gypsum Ceiling Tile Cutting Machine is a fully automated, precision-engineered solution designed for the efficient and accurate cutting of PVC-laminated gypsum boards into standard ceiling tile sizes. This machine is an essential component in modern ceiling tile manufacturing lines, ensuring high productivity, minimal material waste, and consistent product quality. It is specifically engineered to handle large-format boards (e.g., 1220x2400mm) and process them into common tile dimensions such as 600x600mm and 600x1200mm.
Key Features and Advantages
High-Speed Automated Cutting
Equipped with a multi-blade system (typically 3 longitudinal and 5 transverse blades), this machine achieves rapid cutting speeds of up to 15 meters per minute, significantly boosting production capacity.
01
Precision Engineering
Advanced designs, including servo-driven mechanisms and stable guide rails, ensure high cutting accuracy and repeatability. This results in finished tiles with clean edges and precise dimensions, ready for immediate installation.
02
Integrated Dust Collection
The system is designed to be paired with a dedicated pulse-jet bag filter dust collector. This effectively captures gypsum dust generated during the cutting process, maintaining a clean and safe working environment.
03
Robust and Synchronized Operation
The entire unit operates on a synchronized chain-and-sprocket transmission system with variable frequency drive (VFD) control. This ensures smooth, stable, and consistent movement of the board through the cutting process.
04
User-Friendly Automation
From automatic board feeding and stacking to the cutting process itself, the machine minimizes manual labor and streamlines workflow, reducing operational costs and the potential for human error.
05
Technical Specifications
|
Parameter |
Specification |
|
Applicable Board Size |
1220 mm x 2400 mm |
|
Finished Tile Sizes |
600 mm x 600 mm, 600 mm x 1200 mm (customizable) |
|
Max. Cutting Speed |
15 m/min |
|
Blade Configuration |
3 longitudinal blades, 5 transverse blades |
|
Total Power Rating |
17.15 kW |
|
Machine Dimensions (LH) |
9000 mm x 4200 mm x 1400 mm |
|
Control System |
Variable Frequency Drive (VFD) for synchronized speed control |
Applications
This machine is ideal for manufacturers of decorative ceiling tiles, specifically for producing PVC-laminated gypsum boards and aluminum foil-laminated gypsum boards. It is a core piece of equipment in a complete ceiling tile production line, which may also include board feeding, dust removal, laminating, and automatic stacking systems.
